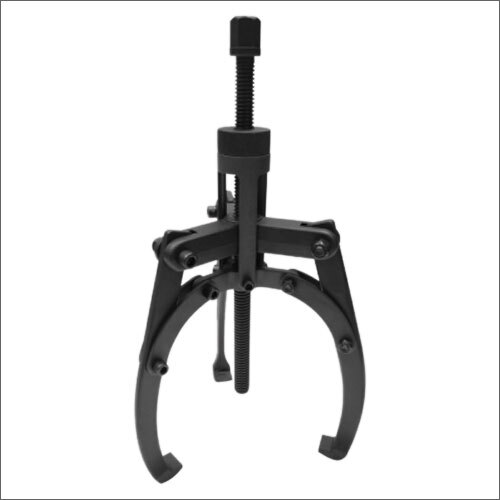

APM Series 2-3 Way Mechanical Easy Pullers

APM Series 2-3 Way Mechanical Easy Pullers
APM Series 2-3 Way Mechanical Easy Pullers
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1 , , Number
  • Price
  • 25000 INR/Number
Product Specifications
  • Color
  • Gray
  • Product Type
  • APM Series 2-3 Way Mechanical Easy Pullers
  • Body Material
  • Steel
  • Type
  • APM Series 2-3 Way Mechanical Easy Pullers
  • Voltage
  • 240 Volt (v)
Product Description

Feature



  • The most simple and efficient design, the screw-Operated jaws bring the users to position the puller on the part quickly and precisely with one person operating only.
  • 3 or 2 fixed jaws for easy positioning and self-centering.
  • Available in six sizes with a maximum pulling force from 2 Ton to 10 Ton.
  • Self-centering function prevents the damage to the shaft and work piece being pulled.
  • Easy operating by one person which save time and work efficiently
  • The first 2 or 3 way mechanical puller in the world, also a good choice to save cost by one price for two pullers.

SIMPLE & EASY PULLING JOB USER-FRIENDLY SAFE SAVING COST



Model no

Capacity

Jaws

Reach (max. mm)

Speed (max. mm)

Shaft dim.

Jaw Tip (mm)

Weight kg

A

B

C

APM 50

2 ton

3

80

120

5/8 inch x 8T

8

6

15

1.3

APM 52

2 ton

2

80

120

5/8 inch x 8T

8

6

15

0.9

APM 100

5 ton

3

160

250

3/4 inch x 8T

11

10

25

3.7

APM 102

5 ton

2

160

250

3/4 inch x 8T

11

10

25

3.1

APM 150

10 ton

3

230

380

7/8 inch x 6T

14

10

29

8.8

APM 152

10 ton

2

230

380

7/8 inch x 6T

14

10

29

6.7



Trade Information
  • Supply Ability
  • 100 , , Number Per Week
  • Delivery Time
  • 4-8 Week
  • Main Domestic Market
  • All India
