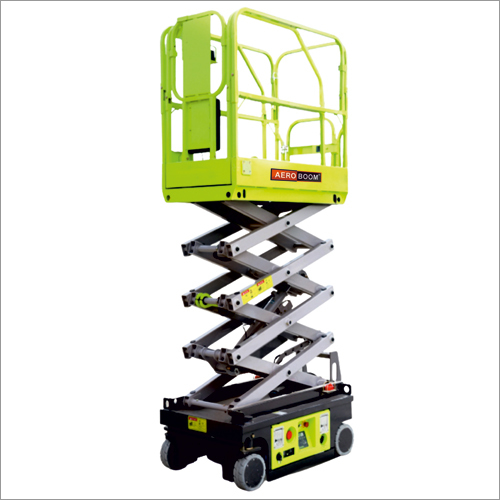

Scissor Lift

Scissor Lift
Scissor Lift
Send Inquiry
Product Code : 92
Price And Quantity
  • Minimum Order Quantity
  • 1 , , Number
  • Price
  • 45000 INR/Number
Product Specifications
  • Color
  • Gray,Green
  • Product Type
  • Scissor Lift
  • Usage
  • Industrial
  • Condition
  • New
  • Power Source
  • Electric
  • Attributes
  • Strong, Durable, Easy To Operate, Rust Proof, Flame Proof, Consume Less Power
Product Description
 FEATURES
  • Proportional controls
  • All motion alarm
  • Fold-down handrails
  • Flashing amber beacon
  • Self-closing entry gate
  • Active pothole protection system
  • Auto brake system
  • Emergency descent system
  • Emergency stop button
  • Maintenance-free battery
  • Extension deck (unidirectional)
  • On-board diagnostic
  • Over tilt protective system
  • Forklift pockets
  • Drivable at full height
  • Hour metre
  • Charging protection system
  • Scissor maintenance prop
  • Load sensing system
  • Horn

HIGHLIGHTS High Performance

  • Efficient electric direct drive system.
  • Light weight only 1975lb/895kg.
  • Climbing up 30 percent grade slopes in a stowed position.
  • A maximum work height of 21ft 4in/6.5m.
  • Compact dimensions ideal for low and tight access applications.

Cost Effectiveness

  • Modularized and unitized parts design ideal for maintenance.
  • Drawer type tray easy to service.
  • Robust & build to last, reliable and safe.

ACCESSORIES & OPTIONS

  • Platform work lights.
  • AC power to platform.
  • Air line to platform

Model

AMSL0407DC

AMSL0407DC Li

Imperial

Metric

Imperial

Metric

Size









Work height

21ft 4in

6.5m

21ft 4in

6.5m

A Platform Height Elevated

14ft 9in

4.5m

14ft 9in

4.5m

B Platform Height Stowed

3ft 1in

0.95m

3ft 1in

0.95m

C-Platform Length

4ft 3in

1.29m

4ft 3in

1.29m

D-Platform Width

2ft 4in

0.7m

2ft 4in

0.7m

Platform Extension

2ft

0.6m

2ft

0.6m

E-Overall Height Rails Up

6ft 9in

2.05m

6ft 9in

2.05m

Overall Height Rails Down

5ft 7in

1.7m

5ft 7in

1.7m

F-Overall Length

4ft 9in

1.44m

4ft 9in

1.44m

G-Overall Width

2ft 6in

0.76m

2ft 6in

0.76m

H Wheelbase

3ft 5in

1.05m

3ft 5in

1.05m

I-Ground Clearance Stowed

2.4in

0.06m

2.4in

0.06m

J-Ground Clearance Raised

0.65in

0.017m

0.65in

0.017m

Performance









Platform Capacity

530lb

240kg

530lb

240kg

Capacity on Deck Extension

220lb

100kg

220lb

100kg

Max. Number of Workers

2

2

2

2

Drive Speed Stowed

2.5mph

4km/h

2.5mph

4km/h

Drive Speed Raised

0.5mph

0.8km/h

0.5mph

0.8km/h

Turning Radius Inside

1ft 4in

0.4m

1ft 4in

0.4m

Turning Radius Outside

5ft 3in

5ft 3in

5ft 3in

1.6m

Lifting Motor

24V/1.2KW

24V/1.2KW

Drive Motor

24V/2x0.45KW

88s/60s

Up/Down Time

23/25s

88s/60s

Gradeability

30% (17 degree)

25% (14 degree)

Max. Working Slope Lateral/ Vertical

1.5 degree /3 degree

1.5 degree /3 degree

Control

Proportional Contro

Proportional Contro

Drive

Rear Wheels

Rear Wheels

Brake

Rear Wheels

Rear Wheels

Tyre

9inx3in

230mmx80mm

9inx3in

230mm x80mm

Power









Battery (Optional)

2x12V/85Ah

102Ah Li-ion Battery

Charger (Optional)

24V/15A

24V/15A

Weight









Gross

1975lb

895kg

1975lb

895kg










Trade Information
  • Supply Ability
  • 100 , , Number Per Week
  • Delivery Time
  • 4-8 Week
  • Main Domestic Market
  • All India
